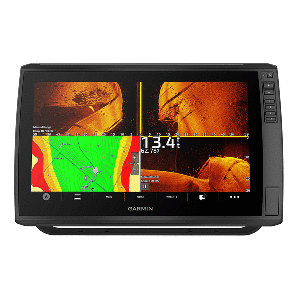

Garmin ECHOMAP™ Ultra 2 16" Chartplotter 166sv w/GN+ Mapping w/o Transducer

Garmin ECHOMAP Ultra 2 16” – See More. Catch More.

When you’re serious about finding fish, size matters — and the Garmin ECHOMAP Ultra 2 16” delivers the kind of screen real estate that changes the game.

With a massive 16-inch Full HD display, this unit brings unmatched clarity, brightness, and detail to everything from mapping to sonar. Whether you’re scanning structure or tracking bait, you’re seeing it bigger, clearer, and faster.

Why This Unit Stands Out

This isn’t just a graph — it’s your command center on the water.

From LiveScope compatibility to Ultra High-Definition scanning sonar, the Ultra 2 is built for anglers who want every advantage possible.

Key Features:

🔥 Full HD 16” Display

• 1920 x 1080 resolution
• Bright, crisp, and easy to read in any condition
• Massive viewing area for split screens and detail

🎯 LiveScope Ready

• Supports the full lineup of LiveScope sonar systems
• Real-time imaging that puts fish and structure right in front of you
  (transducer sold separately)

🌊 Built-In UHD Sonar

• CHIRP traditional sonar
• Ultra High-Definition ClearVü & SideVü
• Paired with GT56 transducer on select models
• Photo-like detail of what’s below and around your boat

🗺️ Preloaded Mapping

• Garmin Navionics+ included on select units
• 1-year updates
• Depth shading + advanced mapping features
• Upgrade option to Navionics Vision+ for premium detail

📺 HDMI Output

• Mirror your screen to a TV or external display
• Perfect for bigger boats or console viewing

🎤 Voice Control

• Built-in Bluetooth
• Control key features hands-free
• Integrates with Force trolling motor functions

📡 Wireless Networking

• Share sonar, waypoints, and routes
• Connects with other ECHOMAP Ultra 2 or UHD2 units

📍 Multi-Band GPS

• Improved accuracy
• Better positioning in tough conditions

🔌 NMEA 2000 Compatible

• Connect to heading sensors, autopilots, audio systems, and more

📱 ActiveCaptain Integration

• Software updates
• Screen recording
• Community mapping
• Control from your smartphone

Built for the Real World

• IPX7 waterproof rating
• Durable construction
• Bail mount or flush mount options
• Designed to handle long days and rough water

Specs at a Glance:

• Display: 16” Full HD (1920 x 1080)
• Dimensions: 16.9” x 10.5” x 3.14”
• Weight: 9.5 lbs
• Power: 9–18 VDC
• Draw: 3.9A typical / 6.6A max
• Card Slots: Dual microSD

What’s in the Box:

• ECHOMAP Ultra 2 162sv or 166sv
• Power cable
• Bail mount with knobs
• Protective sun cover
• Mounting hardware
• Documentation

Elite Sonar Take

If you want big screen, big detail, and zero guesswork, this is it.
This unit is built for anglers who don’t want to miss anything — and don’t settle for average.

👉 When you’re staring at a screen this size, you’re not just fishing… you’re hunting.
