GPSMAP® 8612xsv
GPSMAP® 8612xsv
Couldn't load pickup availability
GPSMAP® 8612xsv
With Mapping and Sonar
PART NUMBER010-02092-51
SERIOUS ANGLERS, CRUISERS, SAILORS AND SAIL RACERS DEMAND SERIOUS EQUIPMENT
The easy-to-use, easy-to-install chartplotter/sonar combo delivers MFD performance in a combo-size package.

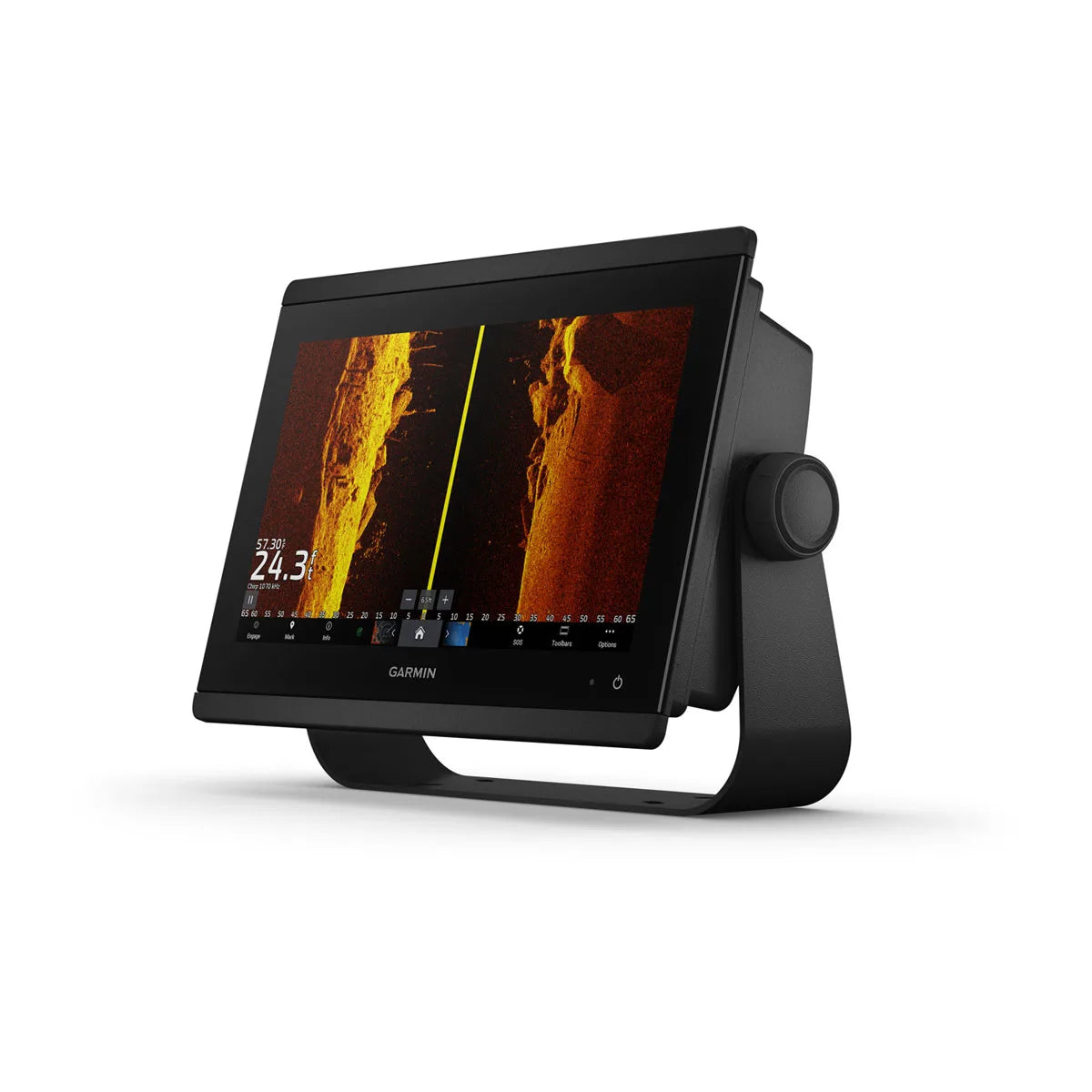

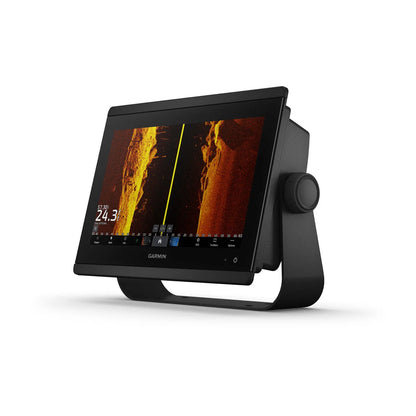

Get wider viewing angles and superior clarity on the touchscreen with a full HD in-plane switching (IPS) display.
Navigate confidently with built-in Garmin Navionics+™ inland and coastal mapping1.
Easily build your marine system using the best of network connectivity.
See below and around your boat with built-in sonar capabilities (transducers sold separately).
From ANT® technology to Wi-Fi® networking, there are countless ways to connect to your system.
With SmartMode™ station controls, everything is designed to give you quick, one-touch access to the information you need.
SPECS:
| General | |
|---|---|
| Dimension | 11.9" x 8.5" x 3" (30.3 cm x 21.6 cm x 7.6 cm) |
| Weight |
6.0 lbs (2.7 kg) |
| Water rating |
IPX7 |
| Touchscreen | Yes |
| Display Type | FHD, IPS |
| Display Size | 10.1" x 5.7"; 11.6" diagonal, 25.7 cm x 14.5 cm; 29.5 cm diagonal |
| Display resolution | 1920 x 1080 pixels |

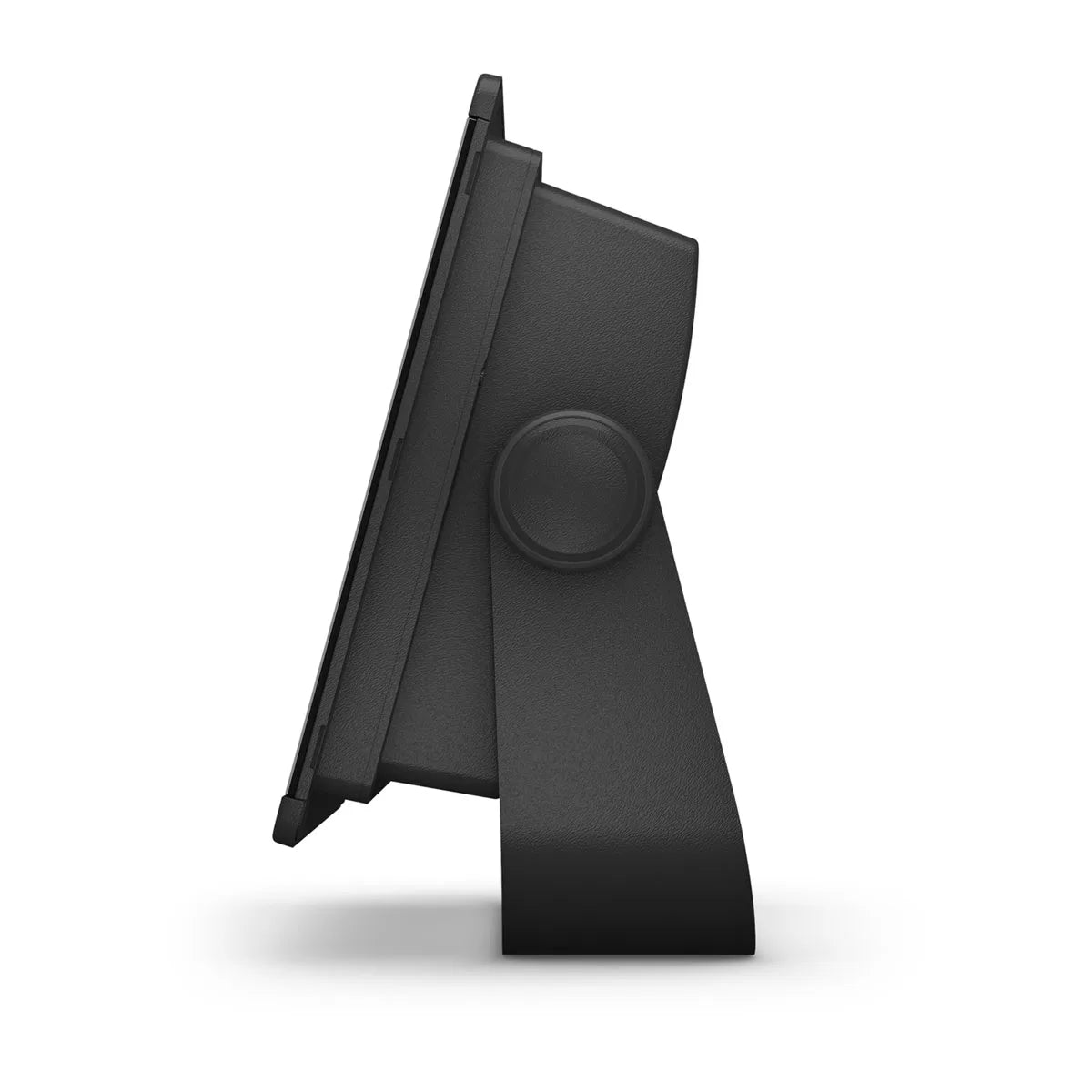

| Mounting Options | Bail, flat or flush (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.) |
| Input | Touchscreen |
| Maps & Memory | |
|---|---|
| Accepts Data Cards | 2 microSD cards |
| Waypoints |
5000 |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
| Sensors | |
|---|---|
| GPS | Yes |
| GLONASS | Yes |
| Galileo | Yes |
| Has built-in receiver | Yes |
| Receiver |
10 Hz |
| NMEA 2000 Compatible | Yes |
| NMEA 0183 Compatible | Yes |
| Supports WAAS | Yes |
| Built-in Maps | |
|---|---|
| Built-in Auto Guidance+ | Yes |
| Garmin Navionics+ Inland & Coastal | Yes |
| Tide tables | Yes |
| Optional Map Support | |
|---|---|
| Garmin Navionics+™ | Yes |
| Garmin Navionics Vision+™ | Yes |
| TOPO 100K | Yes |
| Standard Mapping | Yes |
| Garmin Quickdraw Contours | Yes |
| Raster chart support | Yes |
| Chartplotter Features | |
|---|---|
| Smart Mode Compatible | Yes |
| AIS | Yes |
| DSC | Yes |
| Supports Fusion-Link™ compatible radios | Yes |
| GSD Black Box Sonar Support | Yes |
| GCV Black Box Sonar Support | Yes |
| ActiveCaptain® compatible | yes |
| GRID (Garmin Remote Input Device) compatible | Yes |
| Wireless Remote Compatible | Yes |
| Sailing Features | Yes |
| Spoken audio alerts | Yes |
| OneHelm support | Yes |
| Electrical Features | |
|---|---|
| Power Input | 10 to 32 Vdc |
| Typical current draw at 12 Vdc | 1.3 A |
| Maximum current draw at 12 Vdc | 6.0 A |
| Maximum power usage at 10 Vdc | 45W |
| Sonar Features | |
|---|---|
| Displays sonar | Yes |
| Power output | 1 kW |
| Traditional sonar (dual frequency/beam) | built-in (dual channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| ClearVü | built-in 260/455/800/1000/1200 kHz |
| SideVü | built-in 260/455/800/1000/1200 kHz |
| Panoptix™ sonar | Yes |
| LiveScope | Yes |

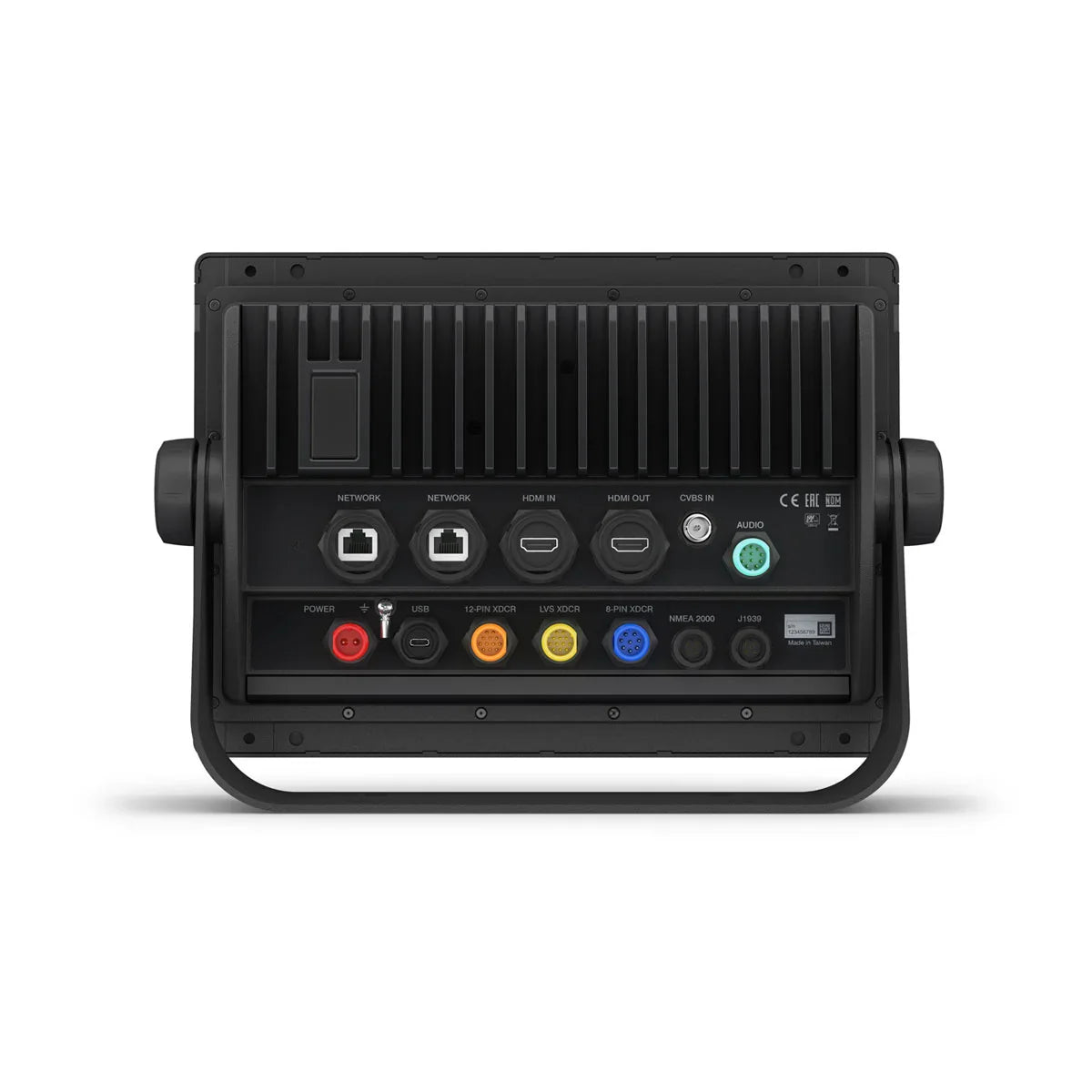

| Connections | |
|---|---|
| NMEA 2000® ports | 1 |
| NMEA 0183 Input (Rx) Ports | 1 |
| NMEA 0183 output (Tx) ports | 1 |
| Video input ports |
1 (BNC composite); 1 HDMI (HDCP compliant) |
| Video output ports |
1 HDMI |
| J1939 ports | 1 |
| Garmin Marine Network Ports |
2 |
| USB ports | Yes |
| BLUETOOTH® pairing | Yes |
| ANT+ (Connectivity) | Yes |
| Garmin Wi-Fi network (local connection) | Yes |
