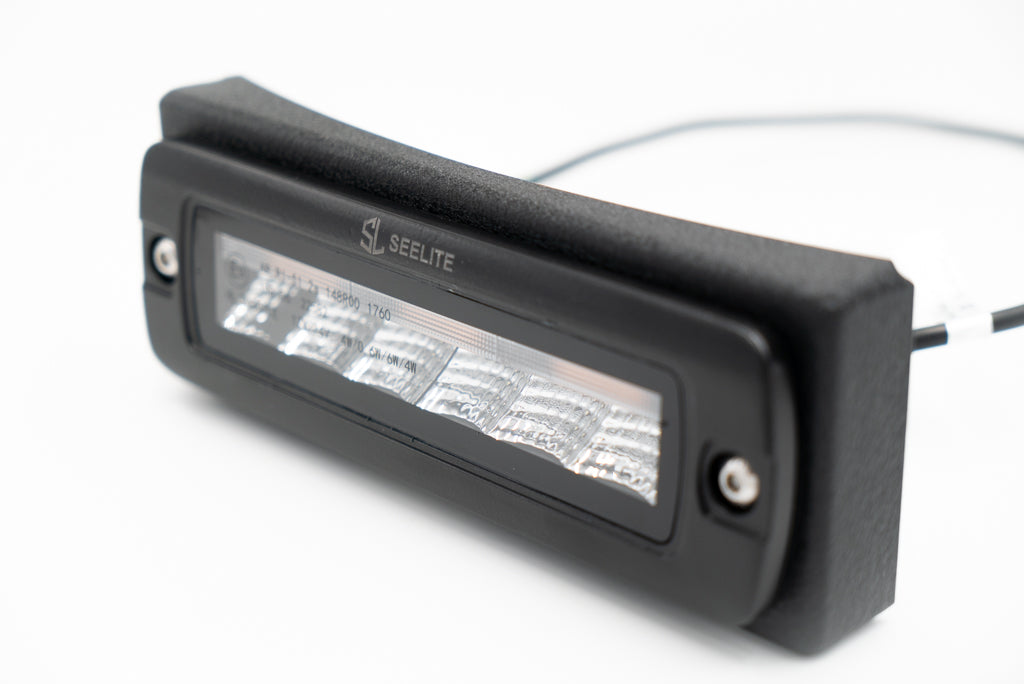

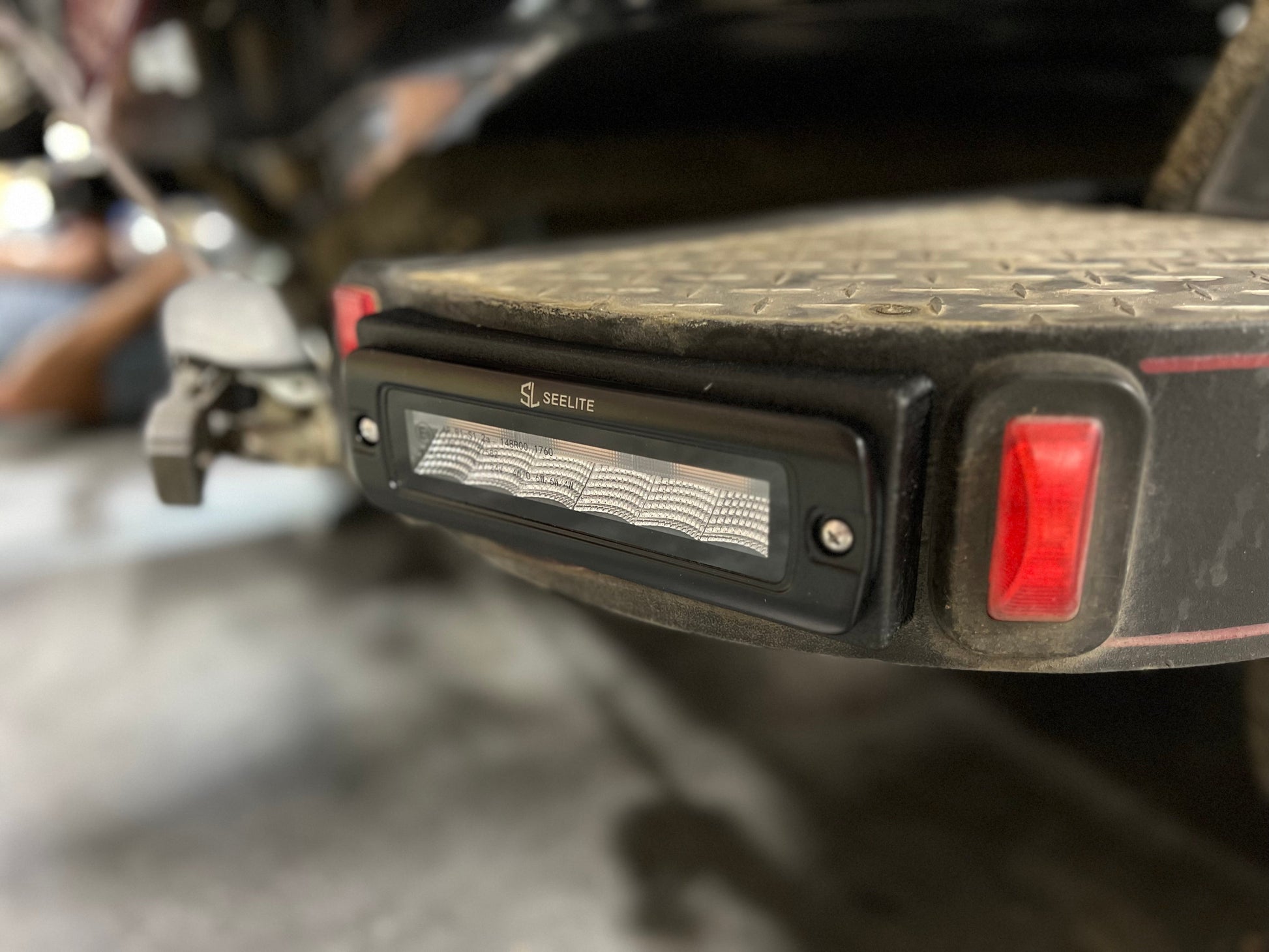

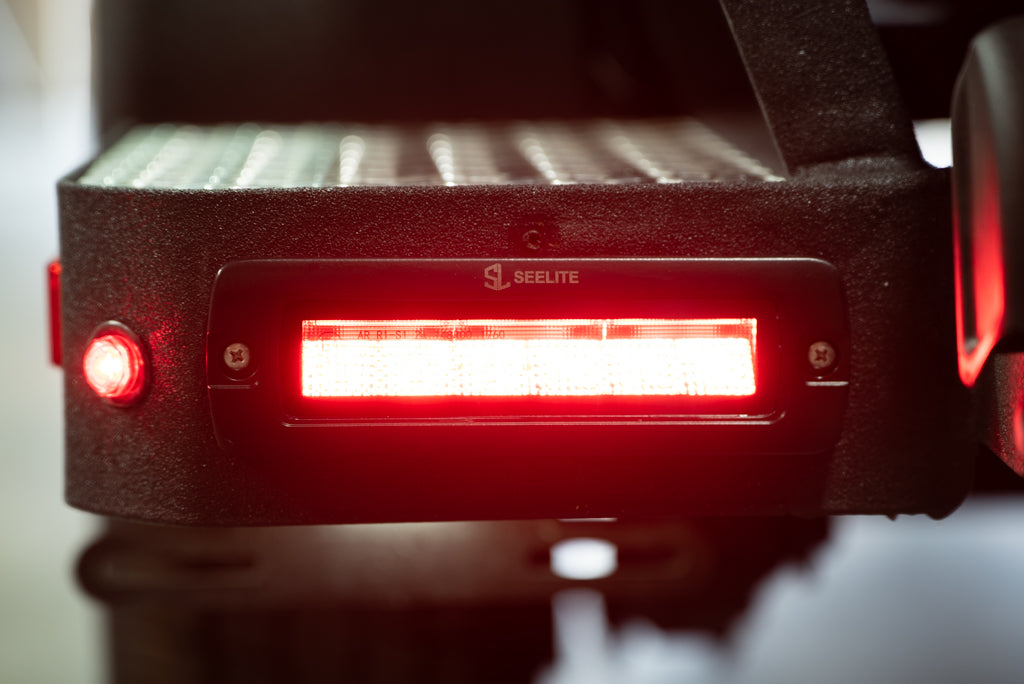

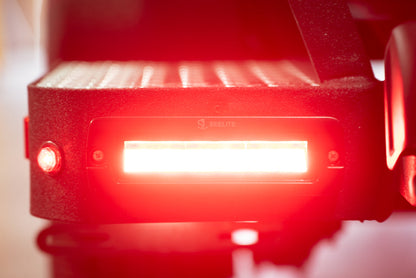

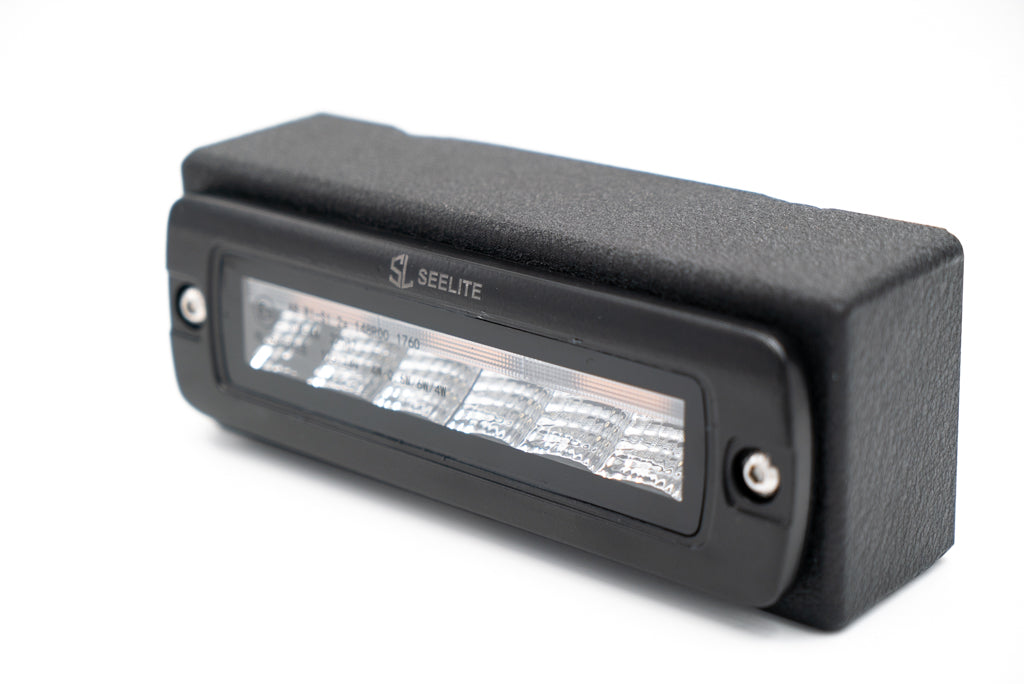

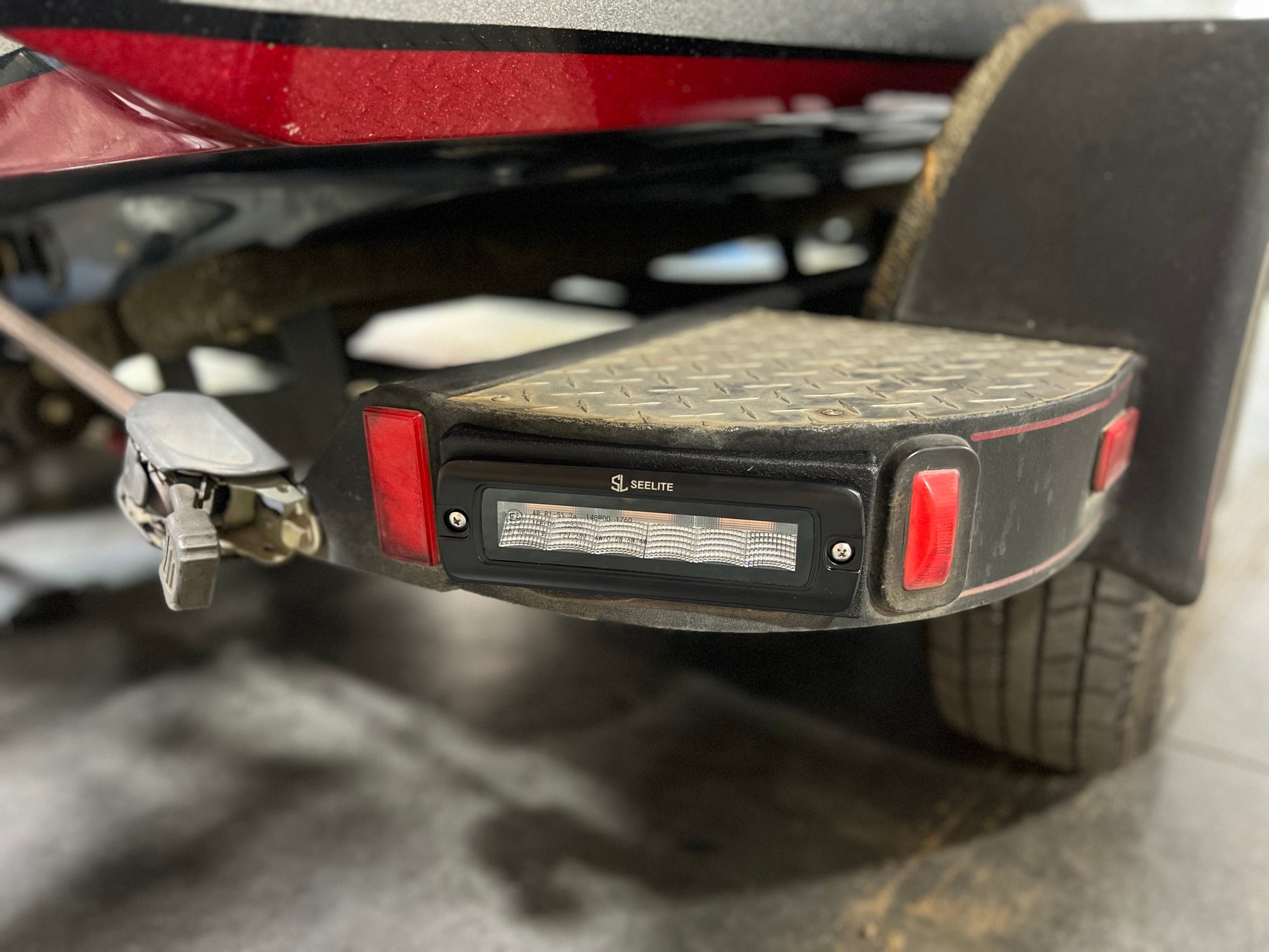

Say goodbye to brittle plastic trailer lights. The SeeLite Trailer Light Kit is engineered to be the toughest and most durable trailer lighting solution on the market. Crafted from fully sealed aluminum, these lights combine your running, brake, and reverse functions into one rugged housing—ready for whatever the road (or ramp) throws your way.

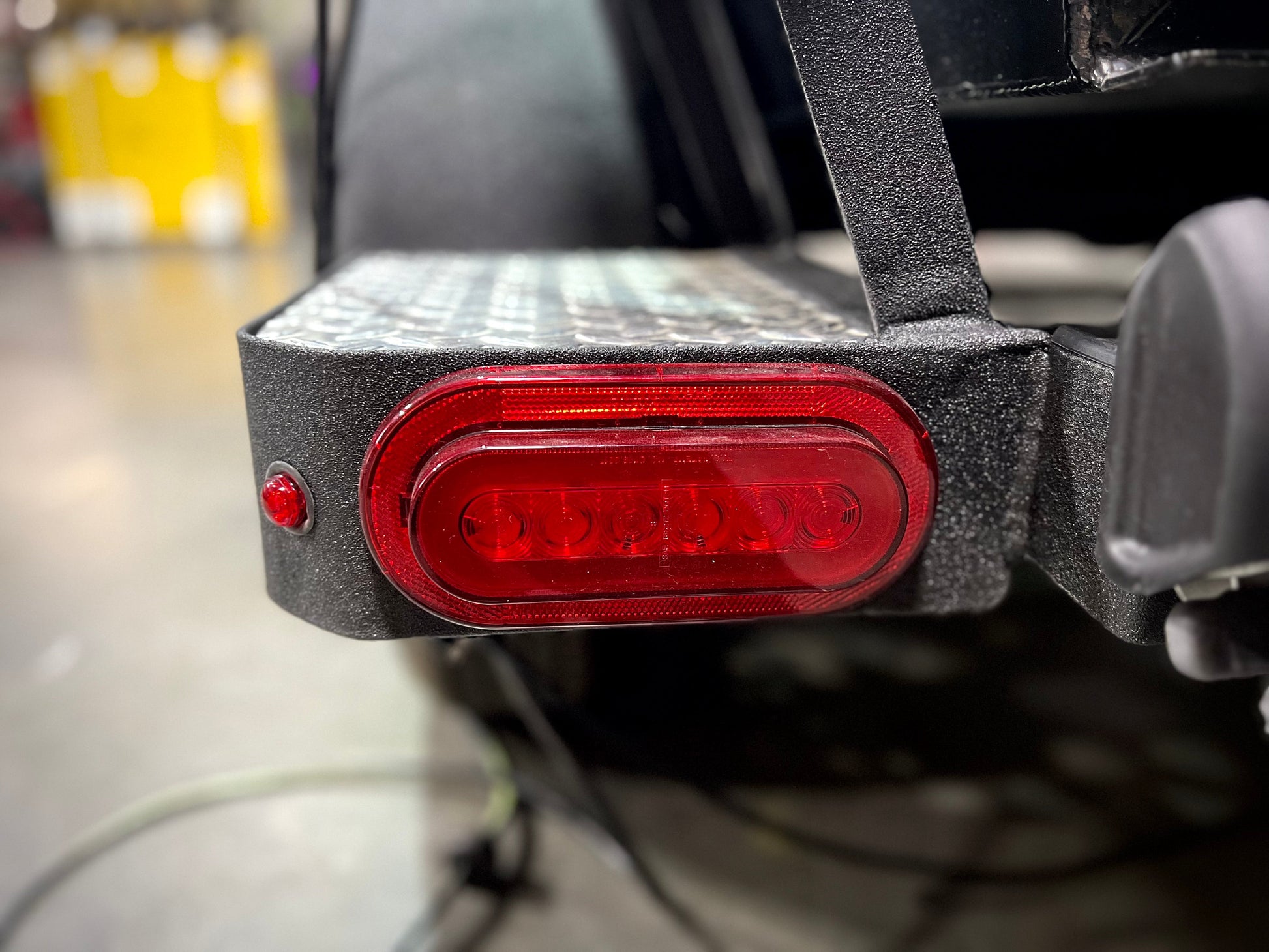

We created this kit because we couldn’t find a heavy-duty metal trailer light that lived up to our standards—so we built one ourselves.
Key Features:

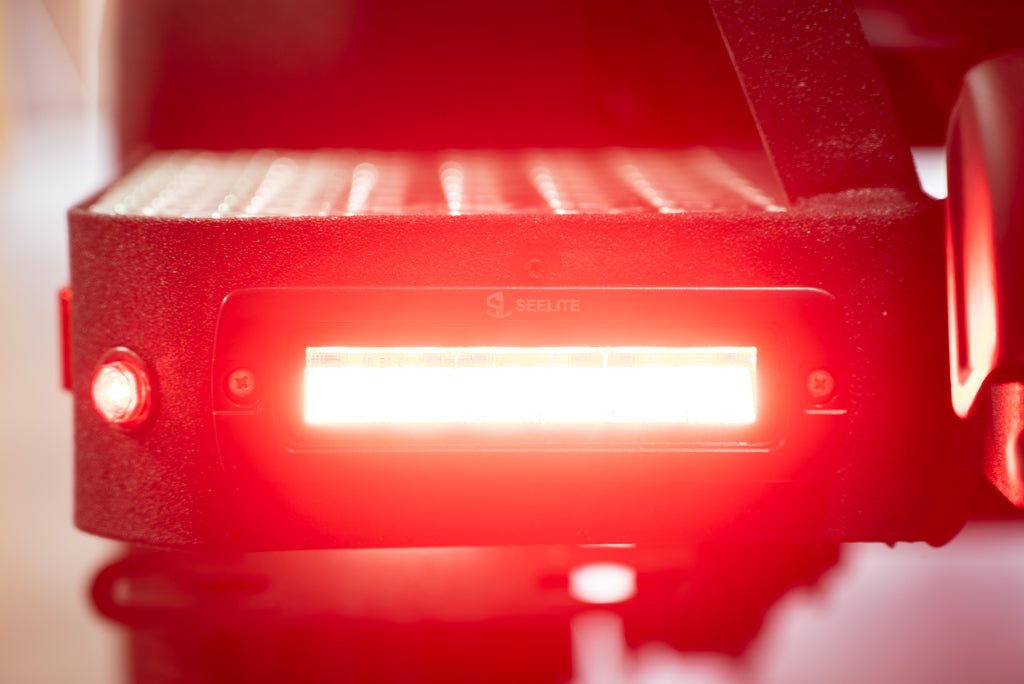

All-in-one design: Running, brake, and reverse lights built into a single housing
Fully sealed aluminum construction – corrosion-resistant and impact-proof

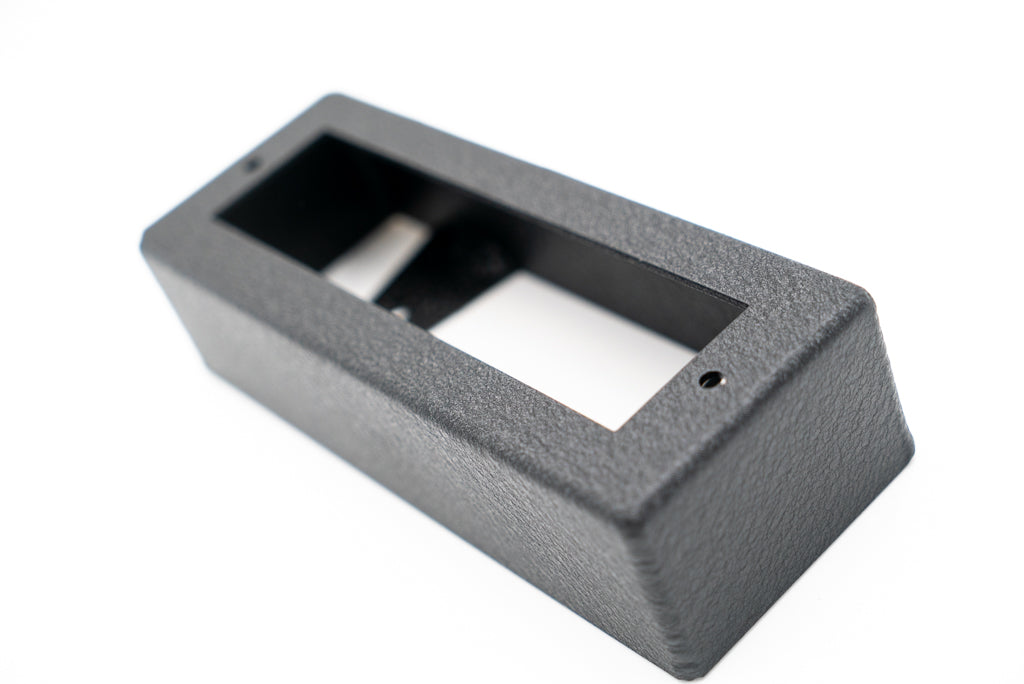

Available in 4 mounting styles:

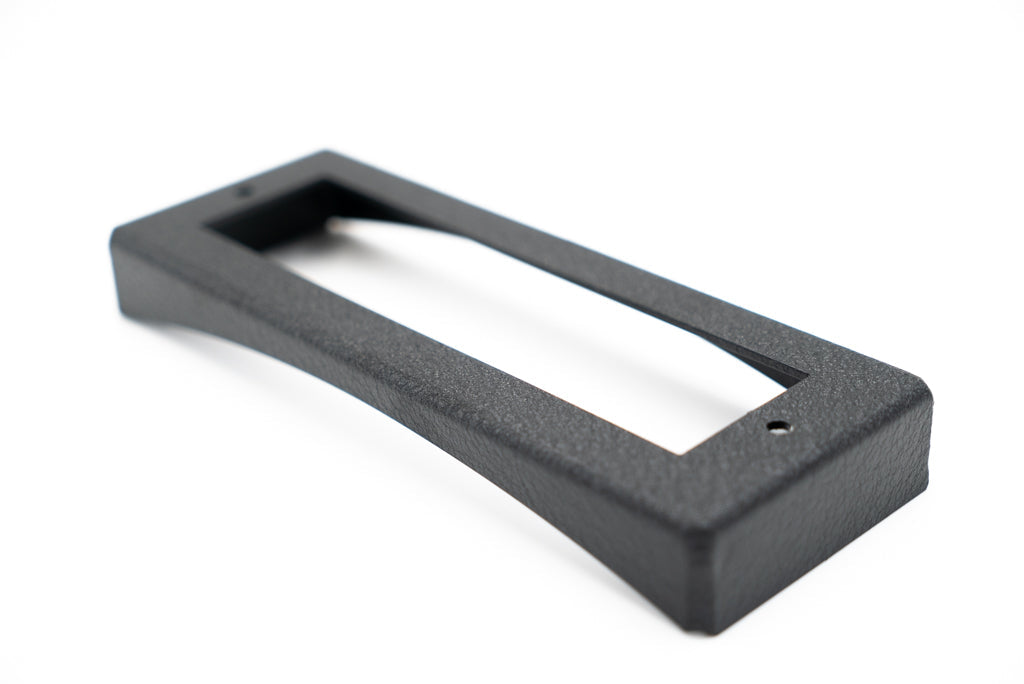

Curved hole

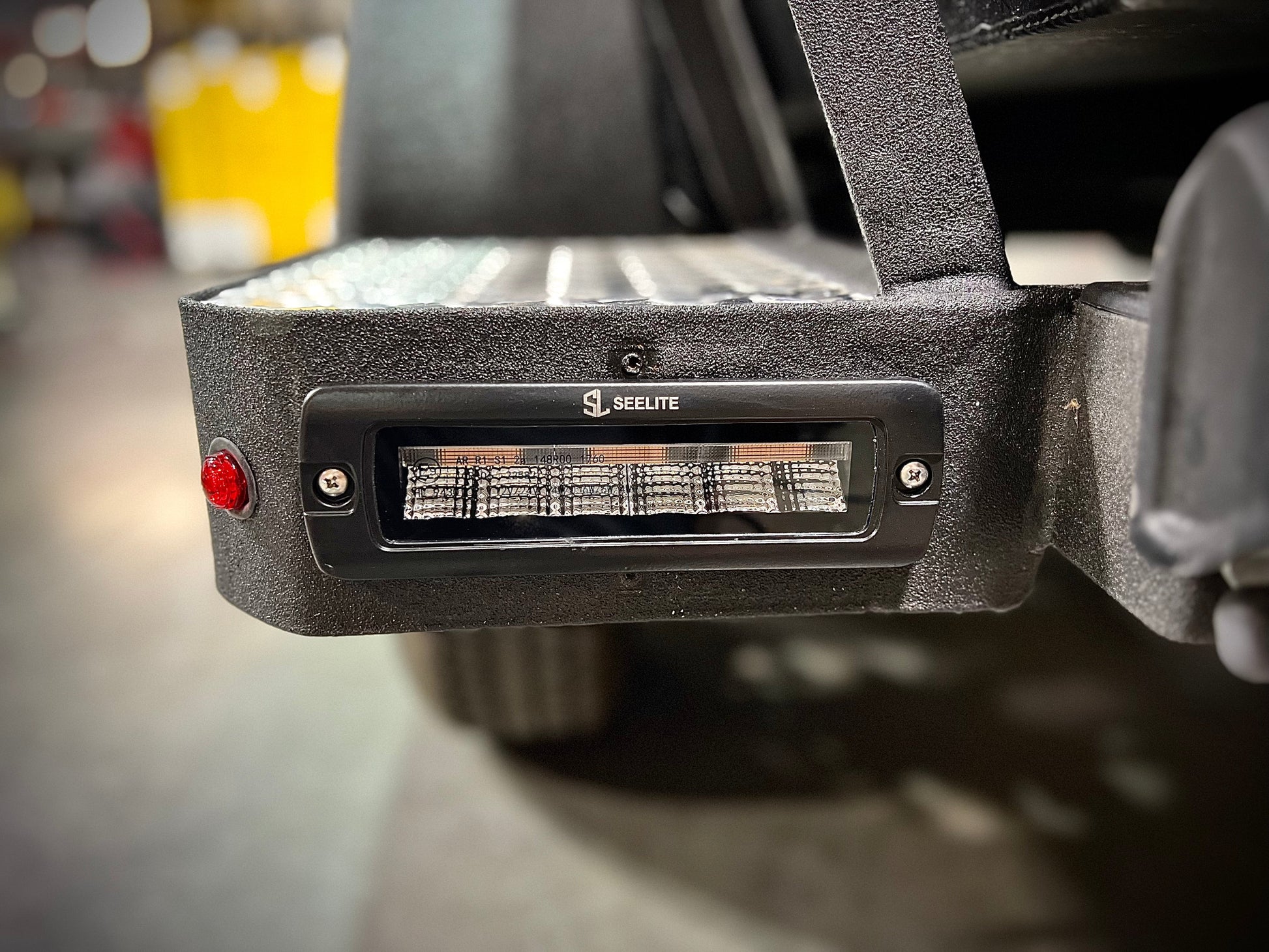

Rectangular hole

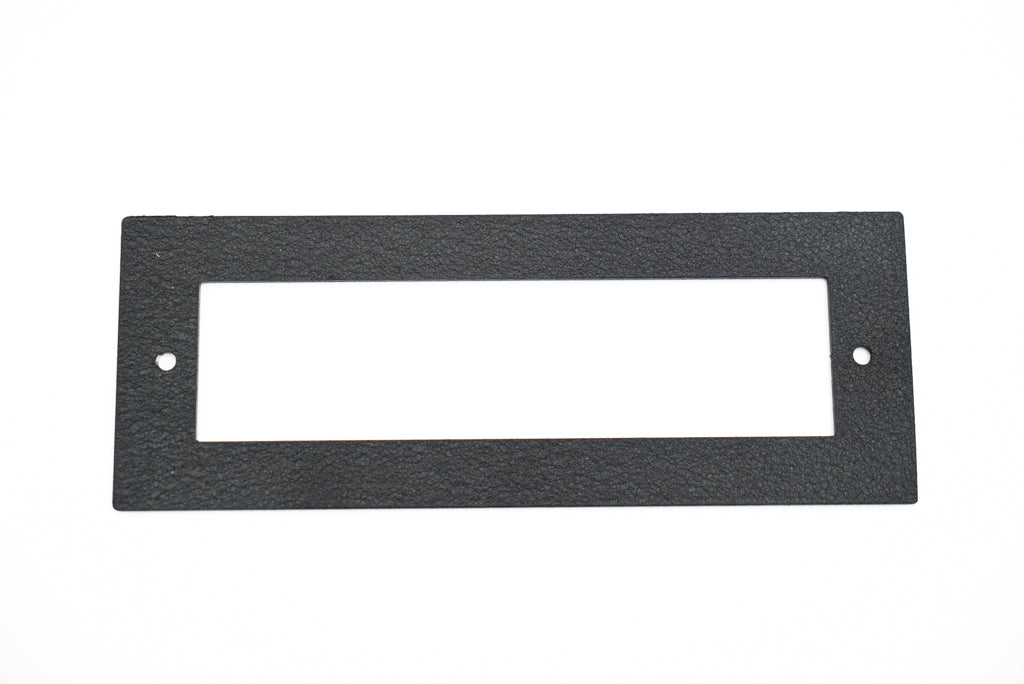

Flat mount
Universal (no holes) – for custom-fit trailers
Specifications:
Light Dimensions: 7 ¾” x 2 ⅜” x 2 ¼”

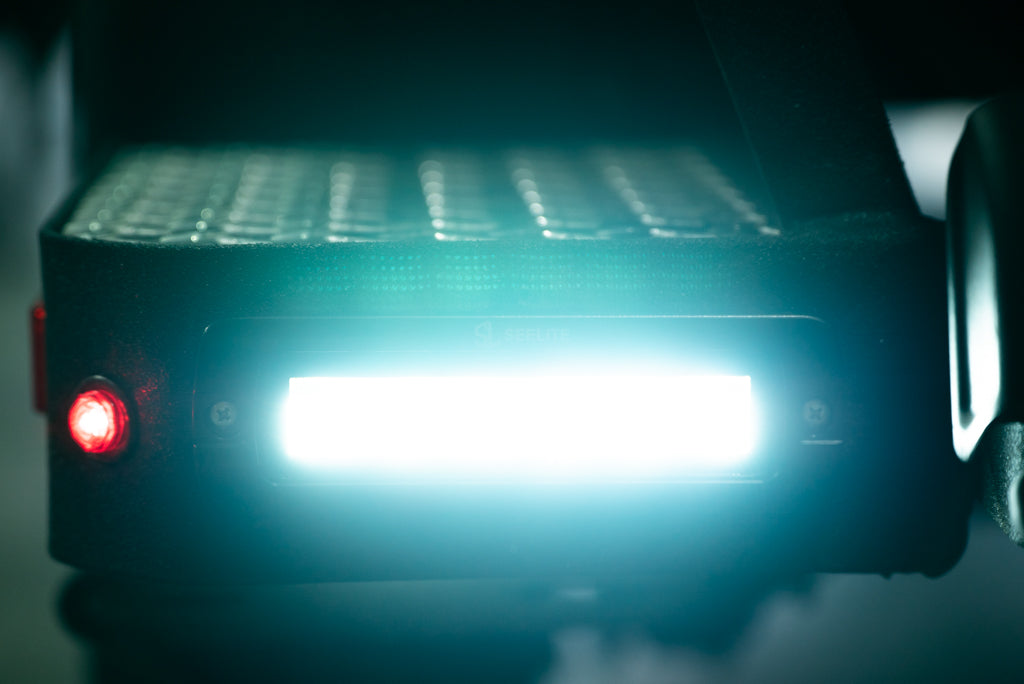

Reverse Light Temp: 5700K
Output: 2,800 Lumens
Amp Draw:
12V: 2.04A
24V: 1.04A
Water/Dust Rating: IP6
Includes:
(2) Fully assembled trailer lights
(2) Heat shrink connectors for install
Wiring Color Guide:
Black – Ground
Red – Brake Lights / Turn Signals
Green – Running Lights
Gray – Reverse Lights
Yellow – Not used for trailer connections (vehicle side only)
Sold as a Set (Pair)
Built to outlast and outperform. The SeeLite Trailer Light Kit is the last trailer light upgrade you'll ever need.
